Seeing the reality: why accurate spatial data matters in complex nuclear and defence programmes

In today’s Defence environments, precision, speed, and certainty are no longer optional, they are necessities. Whether you are managing complex refits, integrating new systems, or maintaining configuration accuracy across platforms, the quality of the data you start with determines the success of your entire project.

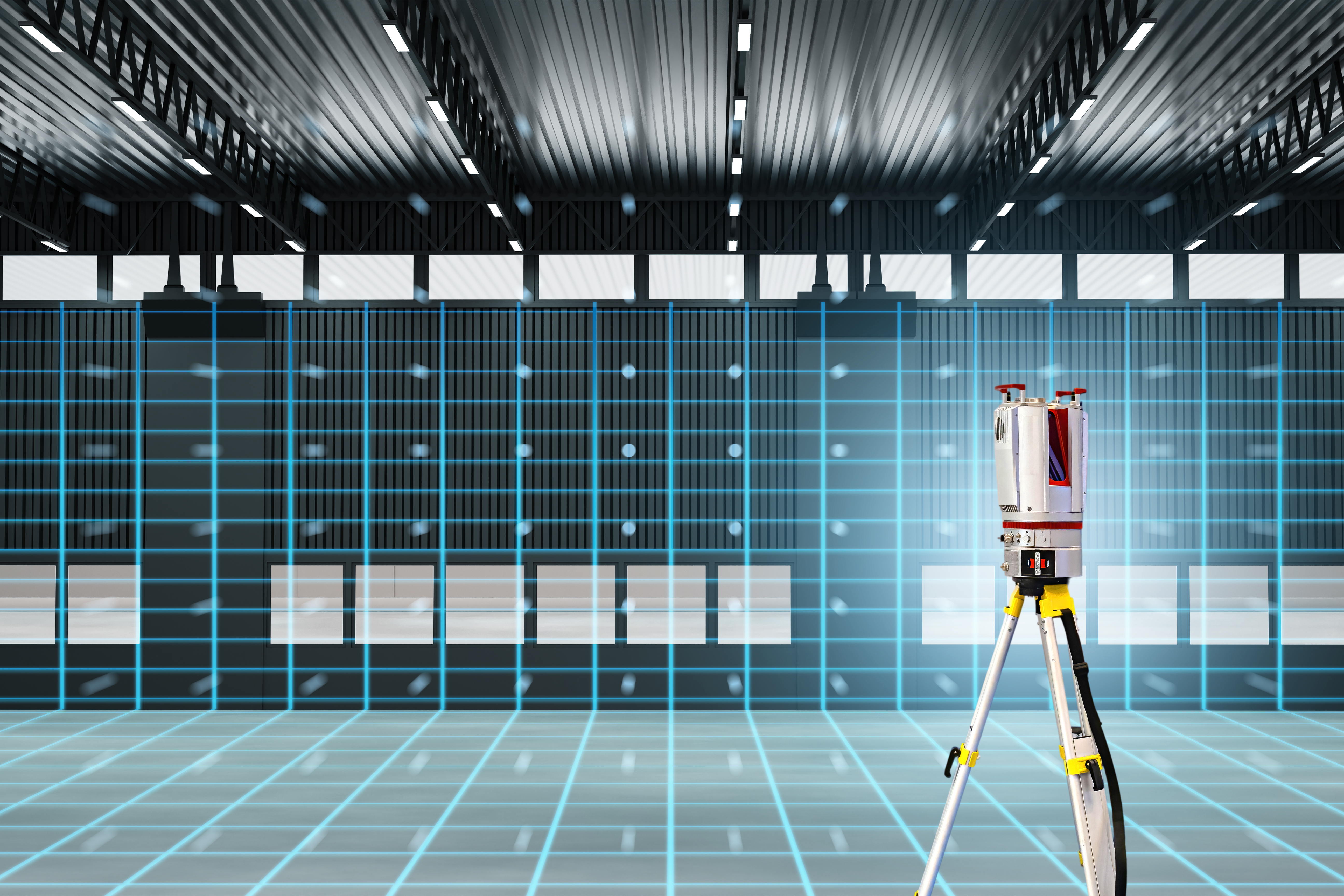

BMT’s advanced 3D scanning capability is built to deliver exactly that: reliable, high‑fidelity spatial intelligence from even the most confined, complex, and secure environments.

BMT have used 3D scanning to support complex engineering design projects since 2008. Using advanced 3D scanning equipment, BMT engineers can accurately and efficiently capture data to be used to overcome design and integration challenges to support customer needs.

Our project teams have used the internal 3D scanning capability to support projects on several vessels including small craft, defence ships, submarines, INF 3 nuclear waste carriers, offshore support vessels, and arctic survey vessels. Projects supported by the 3D scanning capability include retrofitting ballast water treatment plants, integrating new equipment, conducting spatial assessments, and undertaking detail design work for structural changes.

Each project undertaken using BMT’s 3D scanner has had value added through time savings and increased quality.

Proven Technology, Trusted Expertise and Operational Advantage

Operated by experienced engineers, BMT’s 3D scanning capability adds additional value to projects where existing systems, compartments, or structure lacks virtual models or relevant up-to-date documentation. BMT uses 3D scan data to create detailed, as-built environments, verified by conventional measurement techniques to support precise engineering design.

Designed for Tight, Complex and Secure Spaces

Many organisations struggle to capture accurate information from confined areas, heavily packed compartments, or difficult‑to-access machinery spaces. BMT’s scanning capability excels in exactly these conditions.

Because the scanner captures millions of data points from every angle, it provides a true representation of spaces that are otherwise challenging to measure using traditional surveying techniques.

The 3D scanner is used to collect and build 3D information for compartments and equipment with millimetre precision.

With the use of a 3D scanner, BMT can verify spatial integration before finalising the design allowing for a first-time fit during installation. Using 3D models created as part of a design project, BMT can walk through the model with the customer and assess the solution prior to finalising the design. This helps customers gain a clear understanding of the final design and provides an opportunity for feedback.

BMT’s 3D scanner is accredited up to OFFICIAL-SENSITIVE which allows BMT to carry out defence and commercial projects while maintaining high standards for the management of sensitive information. This assurance of security provides the customer with confidence that BMT is a trusted partner in industries where information integrity is paramount.

With a proven track record across defence and commercial sectors, BMT’s 3D scanning capability provides precise, secure, and efficient engineering solutions for complex projects.

By capturing detailed as-built data, BMT maintains its ability to undertake complex integration, retrofit tasks, and design projects.

This allows our engineers to:

• Safely survey confined or hazardous areas
• Confidently plan system integrations and retrofits
• Identify clashes long before installation.
• Reduce the risk of missing equipment, cables, or structural elements

Put simply, the scanner captures what the eye and tape measure cannot.

Efficiency That Enhances Every Stage of Your Project

Beyond survey accuracy, BMT’s workflow is built around customer assurance and project transparency. We offer:

✔ Mid‑project walkthroughs

Customers are invited to review point‑cloud data throughout the project, ensuring alignment, clarity, and buy‑in at critical milestones.

✔ Complete configuration confidence

Because the scanner captures everything in its field of view—including elements you may not have known you needed—we provide unparalleled reassurance that no critical detail has been missed.

✔ Support for engineering and design teams

The captured scan data integrates seamlessly with our design tools and engineering workflows, enabling smoother modelling, faster decision‑making, and fewer on‑site surprises.

If you operate in high‑risk, data‑sensitive, or technically challenging environments, BMT’s 3D scanning capability provides the clarity, assurance, and precision your project requires.

If you’re ready to reduce risk, eliminate rework, and gain complete confidence in your survey data, BMT is ready to help.
